Name: Recommended Riparian Corridor

Display Field: buffercat

Type: Feature Layer

Geometry Type: esriGeometryPolygon

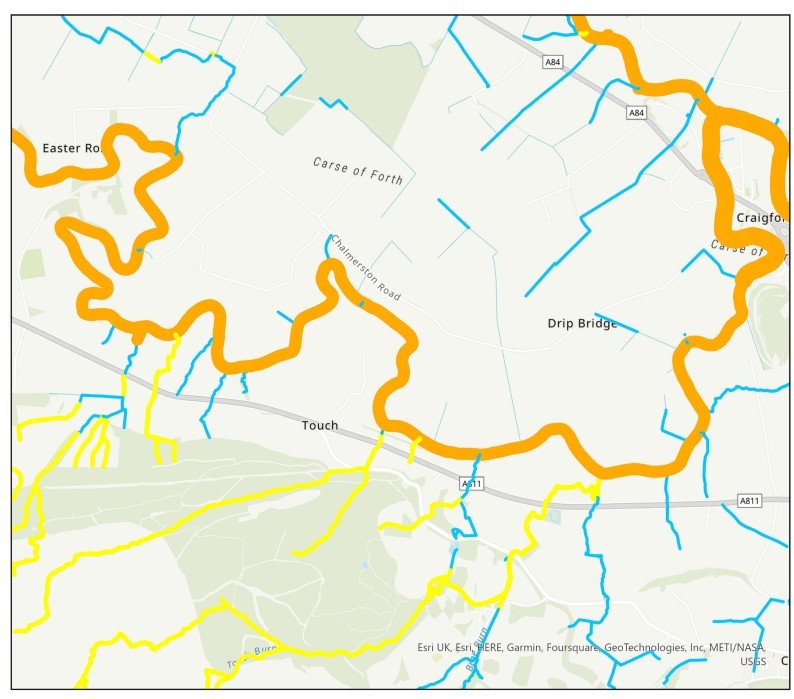

Description: The Riparian Corridor GIS layer is a buffer zone that extends from the banks of all natural watercourses in Scotland. The Riparian Corridor buffer has 3 size categories: 10 m 15 m, and 30 m. The size of buffer is determined by the width each watercourse; channels less than 2 m wide having a corridor of 10m, 2 m to 15 m wide, 15 m and greater than 15 m wide, 30 m applied to each bank. In total, the riparian corridor buffer zone adds 20 m, 30 m or 60 m to the width of each river channel.

Service Item Id: d4639908e4e84b3e8c25e6ad4a0cc652

Copyright Text: The mapped network of natural watercourses and their attributed width values were derived from the Ordnance Survey National Geographic Database, Water Link layer.

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Extent:

XMin: 8148.75
YMin: 530378.4243999999
XMax: 469682.18730000034
YMax: 1217714.8697999995
Spatial Reference: 27700  (27700)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: buffercat
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 10m Buffer
  Label: 10m Buffer
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 197, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Value: 15m Buffer
  Label: 15m Buffer
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 255, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Value: 30m Buffer
  Label: 30m Buffer
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [230, 152, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Value: No data. Measure manually.
  Label: No data. Measure manually.
  Description: N/A
  Symbol:
  Style: esriSFSDiagonalCross
  Color: [0, 0, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
Transparency: 30
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: false
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• buffer ( type: esriFieldTypeDouble, alias: Buffer (m) )
• buffercat ( type: esriFieldTypeString, alias: Buffer Category, length: 254 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
